SpinPlas SolutionADVANCED NANOENGINEERING
MPB

Magnetoplasmonic
Nanobeads.

SpinPlas research nanobeads connect magnetic separation, optical readout, and surface functionalization.

Product Collection · Research Use Only

Three Surfaces and Structures,
One Validated Platform.

The figures below are release criteria and representative values from the product specification. Refer to the CoA for actual lot values.

01
AVAILABLE · QUOTE

SP-MPB-COOH

Carboxyl-functionalized Ag@Fe3O4 magnetoplasmonic nanobead

A foundational platform for EDC/NHS coupling and custom ligand conjugation through a citrate/carboxyl interface. Suitable for developing magnetic recovery and optical/SERS workflows.

DLS
150–220 nm
Representative ~184 nm
PDI
≤ 0.20
Representative ~0.084
Magnetization
≥ 50 emu/gdry basis · representative ~60
Optical band
~600–750 nmbroad plasmonic response
10 mgQuote50 mgQuoteCustomQuote
Request a Quote
SP-MPB-COOH magnetoplasmonic bead concept illustration
AI concept illustration · not to scale
Ag@Fe3O4 magnetoplasmonic nanobead TEM image
Platform TEM · scale bar 50 nm
02
MADE TO ORDER

SP-MPB-SA

Streptavidin-conjugated Ag@Fe3O4 magnetoplasmonic nanobead

Sales will begin soon

A streptavidin-surface product for capturing biotinylated DNA, antibodies, proteins, and synthetic probes. Binding capacity varies with the ligand and assay conditions; lot-specific data is available.

Core / shell
Ag / Fe3O4
Surface
Streptavidin
Workflow
Biotin captureDNA · antibody · protein
QC
Lot-specificDLS / PDI after conjugation
10 mgQuote50 mgQuoteCustomQuote
Request a Quote
SP-MPB-SA streptavidin and biotin capture workflow illustration
Biotin capture workflow illustration
Ag@Fe3O4 magnetoplasmonic nanobead TEM image
Platform TEM · scale bar 50 nm
03
MADE TO ORDER

SP-hMNP-COOH

Carboxyl-bearing hollow Fe3O4 magnetic nanoparticle

Sales will begin soon

A hollow iron oxide platform created by selectively removing the Ag core. Supports research on drug loading, bioconjugation, alginate/hydrogel encapsulation, and magnetic recovery. Removing the Ag core minimizes concerns about silver-related cytotoxicity.

Structure
Hollow Fe3O4
DLS / PDI
150–220 nm / ≤0.20
Residual Ag
Representative 0.07 at%EDS result · lot dependent
Dispersion pH
6.8–7.2
10 mgQuote50 mgQuoteCustomQuote
Request a Quote

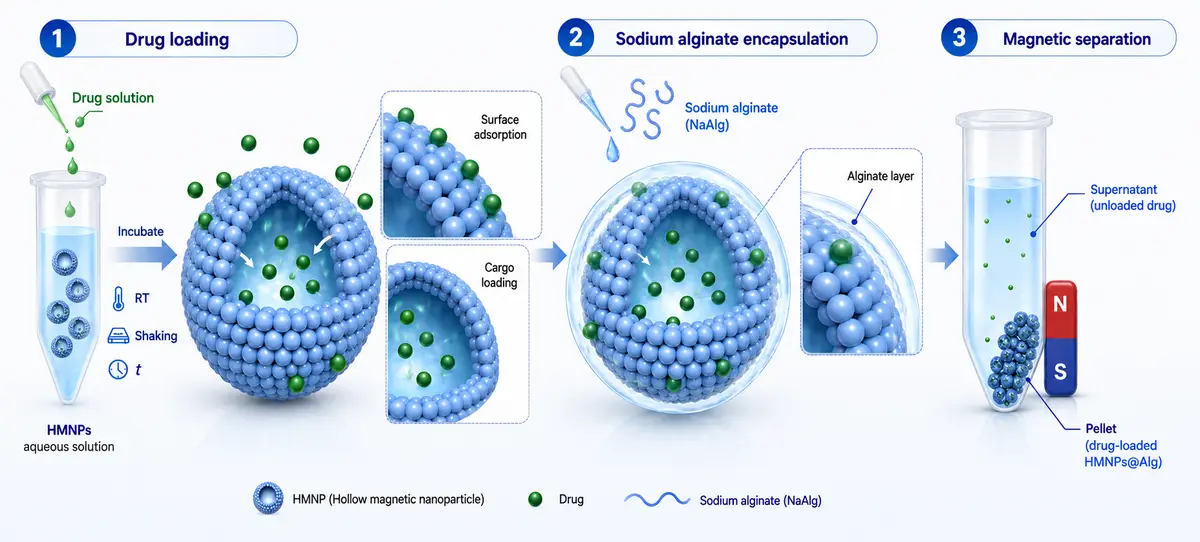

Hollow magnetic nanoparticle loading, encapsulation and separation workflow
Loading · encapsulation · magnetic recovery
SP-hMNP-COOH hollow iron oxide nanoparticle TEM image
Hollow-particle TEM · scale bar 50 nm
APPLICATION EXTENSION

Mechanochromic Sensing Patch

An application that uses an SP-MPB-COOH nanoparticle array on a flexible substrate to visualize substrate deformation through color changes.

PrototypeJoint EvaluationApplication-led Development
Explore the Sensing Patch Application →
